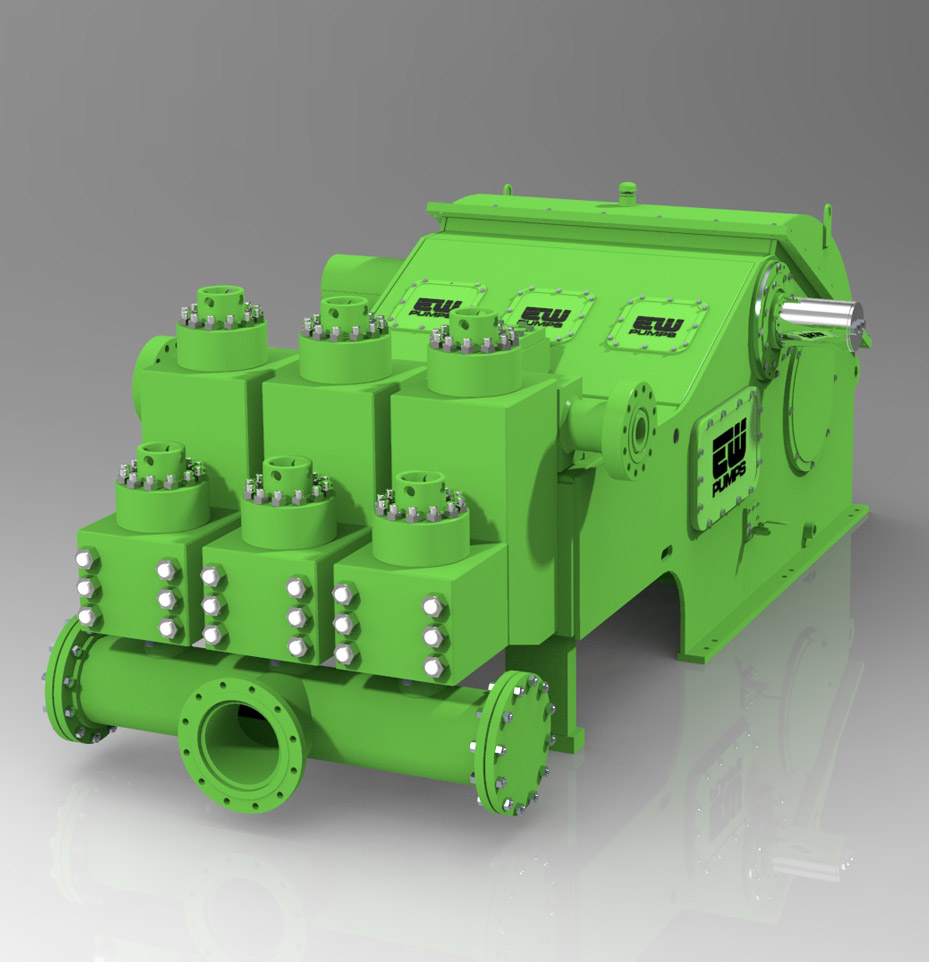

E-1600 TRIPLEX PUMP
Easy to operate. Designed for the long-haul.
Specifically designed to meet the needs of land rigs, the E-1600 triplex mud pump is easy to operate and easy to haul. Our design delivers the rock-solid performance you expect from a 1,600-HP pump.
The E-1600 uses both valve over valve KSI and 2 pc. L-shaped 7.5 KSI fluid ends to provide the particular pressure range and flow rates required for general service applications. The E-1600 is a standout pump for the industry for locations which must depend on longevity of the pumps.
Additionally, you can expect a long service life because the bearings are designed in conjunction with API Spec 7K with an L10 life of 20,000 hours with proper lubrication and maintenance.
1,689 HP
Max Horse Power
58,500 - 64,000 LB
Bareshaft Weight
7,500 PSI
Max Pressure
772 Gal/Min
Max Flow Rate
E-1600 FEATURES
- Compact footprint
- 20,000 pounds lighter compared with competitors’ 1,600-HP pumps
- 24/7 moving using standard trailer; no special permit required
- Easier maneuverability around the padsite
- Shared-part utilization for streamlined spares investment and stocking
- Bearing life to API Spec 7K and L10 life of 20,000 hours
